Power/Con - digitally controlled power outlets

POWER/CON provides digital control of four individual 110V AC devices per module. Control signals can come from simple low voltage switches, a Personal Computer, or a dedicated controller such as SIGNAL INNOVA's GameWorks.

With SIGNAL INNOVA's GameWorks up to four POWER/CON modules (16 independent channels) can be controlled. GameWorks can be programmed to receive input from users and turn on or off any device, combination of devices or sequences.

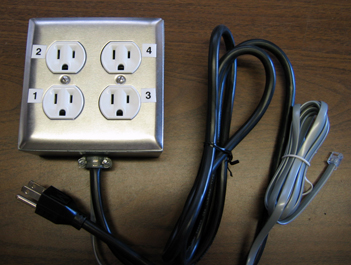

PowerCon

 Features:   Applications:
  • Controls up to 4 electrical devices per module
  • Controllable by PCs, dedicated controllers or switches
  • 500 Watts per device
  • Isolated low voltage control (no shock hazard)
  • Interchangeable modules
  • Reliable solid state electronics
  • Permanent or temporary exhibits and displays
  • Control backlit panels, spot lights, motors, pumps and blowers
  • Remote control of electrical devices
  • Special lighting effects
  • Computer-controlled environments (greenhouses, etc.)
  • Skit and theatrical lighting



 POWER/CON TECHNICAL DATA

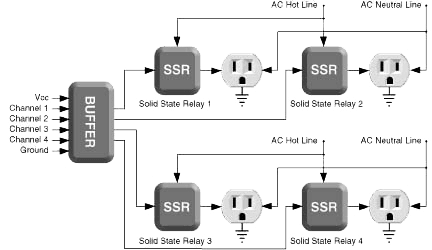

 BLOCK DIAGRAM

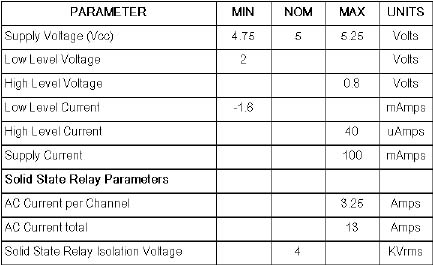

 DC/AC CHARACTERISTICS






 Specifications subject to change without notice
